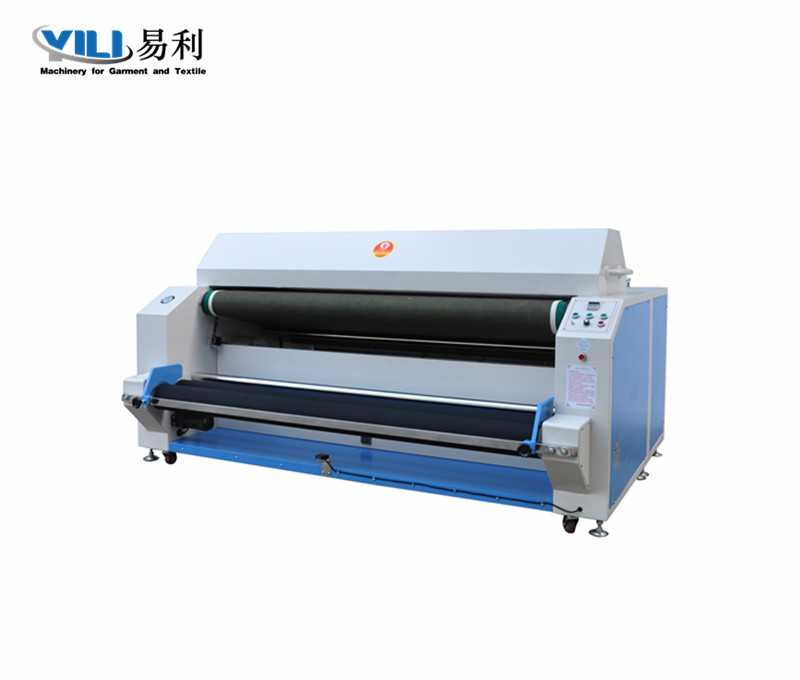

Small Fabric Shrinking Machine

product description

Fabric Shrinking Machine

Model: YL-1600

                            Technical Specification
Voltage&FrequencyAC 380V 50HZ
Steam consumption60kg/h
Steam pressure0.4-0.7 Mpa
Maximum roll fabric diameter40cm
Maximum working width2100mm
Working speedAdjustable,0-20m/min
Drying temperatureAdjustable,≤200 ℃
Drain vapor motor power0.8kw
Feeding fabric motor power0.12kw
Sway folding motor power0.37kw
Belt working motor power0.37kw
Drying heating power4kw
Total  Power6kw
Boundary dimension1800*2610*1300mm


  • Steam humidification and heating

  • Electric heating drying

  • Measurement、folding fabric



  • Fully sealed unique design steam cover: no leakage of steam, reduce the  steam consumption

    (save about 40% steam consumption than other type product), ensure no water dripping

  • The steam cover is made of two layers of stainless steel,good heat preservation and thermal insulation effect

  • Electronic eye monitoring releasing fabric , make sure fabric is in the tension-free state

  • Stepless Frequency Conversion Timing

  • Equipped with original imported electrical appliances, stable performance,machine is durable

  • Use high temperature resistant Teflon mesh belt

Suitable for

Knit and woven ,a variety of general fabric

Structural Diagram
