Automatic Tunnel Ironing And Drying Machine

product description

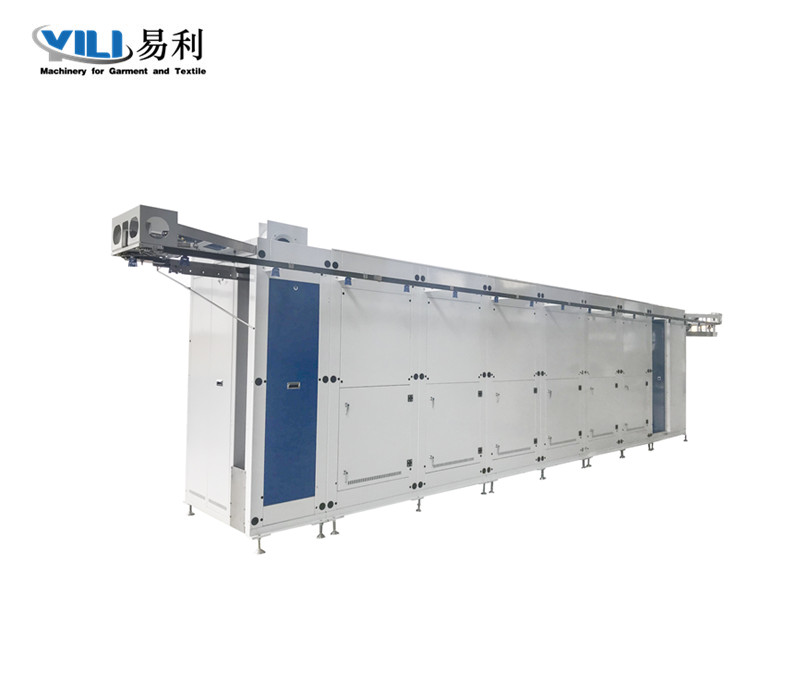

Automatic Tunnel Ironing And Drying Machine


Highly Automatic Machine For Ironing Table Finishing Textiles

Model:YL-8000C


                                Techinal Specification
ModelYL-8000C
Input Voltage3PH AC 400V 50Hz
Fan motor power18kw
Air pressure
0.6Mpa
Air consumption25L/H
Steam pressure0.6Mpa
Steam consumption300kg/h(after pre-heating 150kg/h
Steam pipe diameter
R1-1/2''-R3/4''-R1/2''
Condensation pipe diameterR1-1/2''-R3/4
Weight2500kg
Boundary dismension10150*1560*2375


Product Function

Ironing, drying and cooling for large amount of garment


Product Advantage

High efficiency:Automatic rail conveyor. Independent working area(steam ironing area, hot air drying area, cooling finishing area)

Machinery working efficiency:Finishing 550-1200 pieces garment each hour

Energy saving:The ironing enviroment is relatively sealed, achieving heat preservation effect and reducing steam loss

High quality: Disinfection effect

                       Drying and cooling finishing process to prevent garment from mildewy after packaging in rainy weather


Feature:

  • The electrical automation control component and the PLC program moducle are used to control the operation of the steam, the heating unit and the hot air system, pre-setting the waiting time of the conveyor belt in each process, so that the ironing and drying process is performed efficiency and satbly

  • No condensate at conveyor: Suction at the entrance of the steam area, prevents the formation of drops or stains of the garment

  • Constant temperature steam control system:Ensure consistant ironing and wrinkle finishing effect

  • High efficiency:Independent working area(steam ironing area, hot air drying area, cooling finshing area)

  • High efficiency:blower; strong blowing, low energy consumption and low noise


Suitable for

A variety of cotton、lince、chemiacl fiber, polyeseter、wool and other diffcult fabrics

Tips:Can not solve the collar, cuff and hem flat ironing requirement
